Name: Soudafix VE400-SF Vinylester Chemical Anchor Resin - Styrene Free
SKU: 648510

Soudafix VE400-SF is a premium grade, Vinylester-based, Styrene-Free, two-component chemical anchor resin, primarily designed to facilitate the pressure-free securing of threaded rods, studs, reinforcement bars, threaded collars, and profiles.

Soudafix VE400-SF is equally effective in different types of materials like cracked or uncracked concrete, solid or hollow brick, porous concrete, natural stone, plasterboard walls, etc.

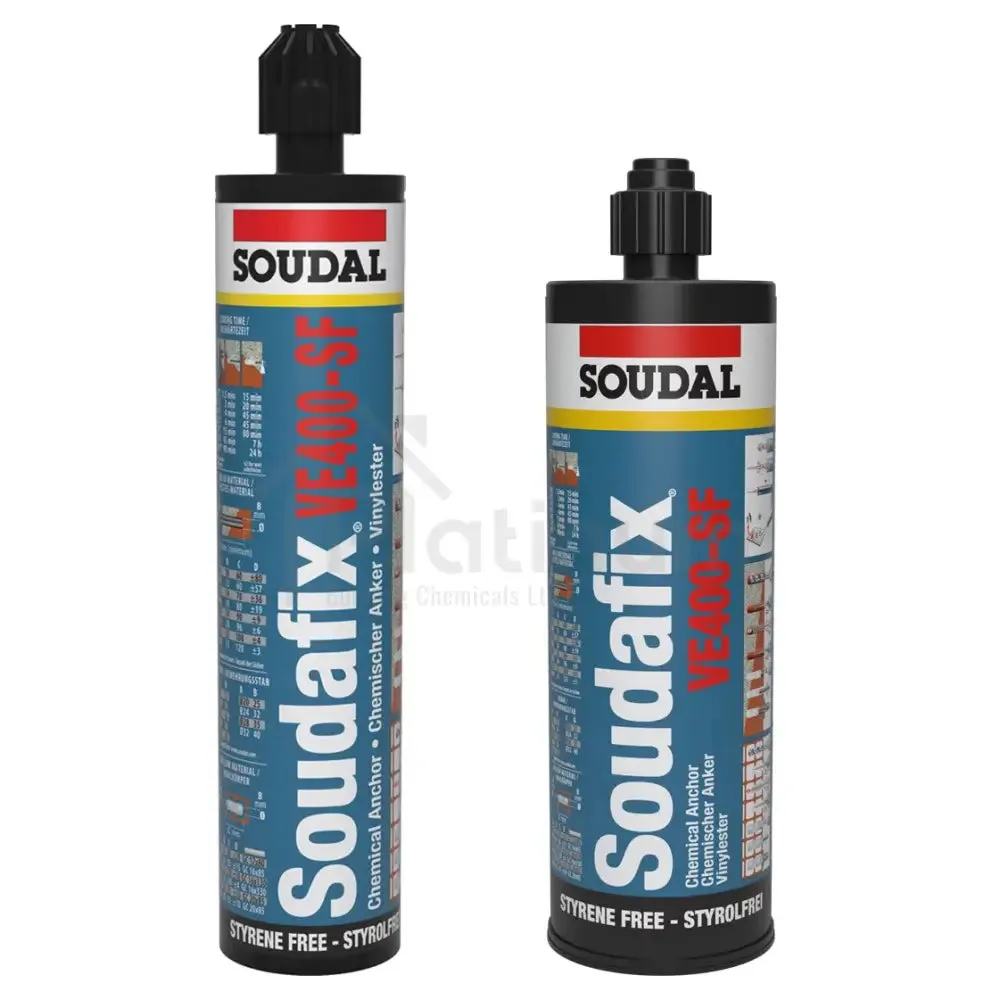

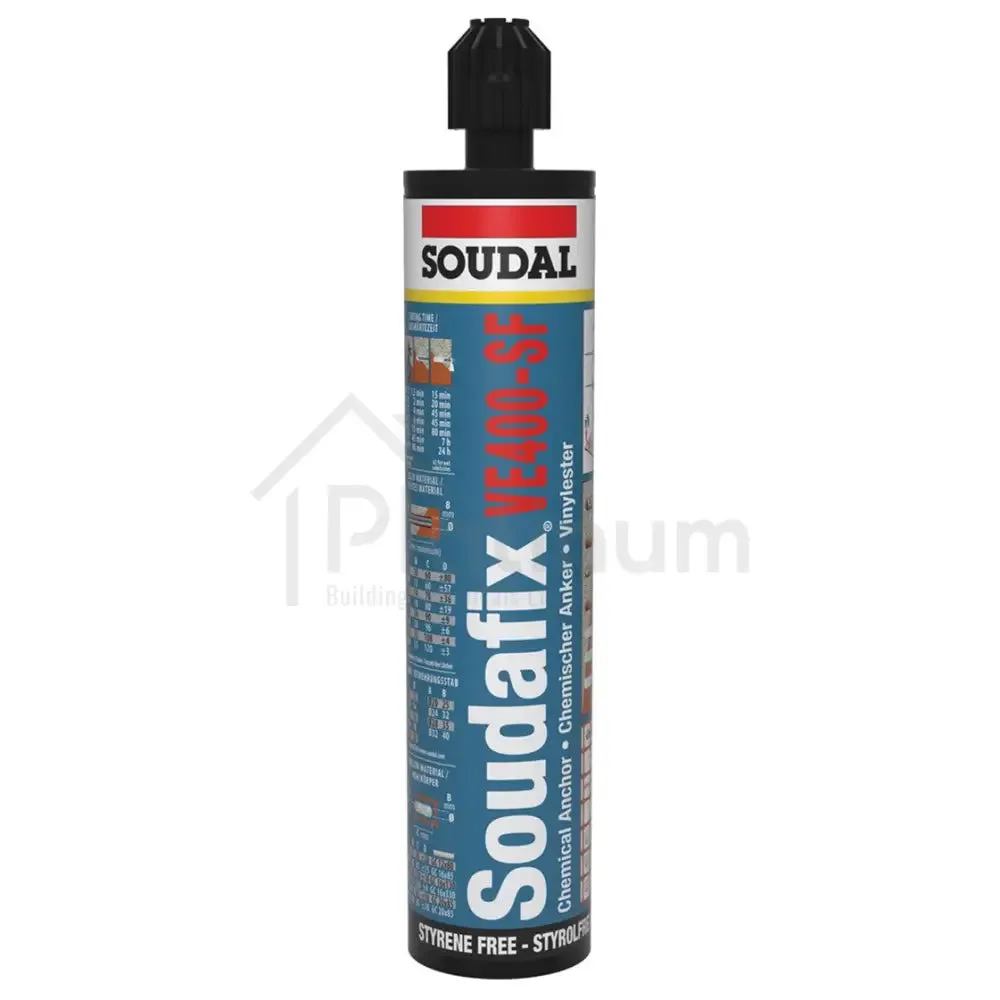

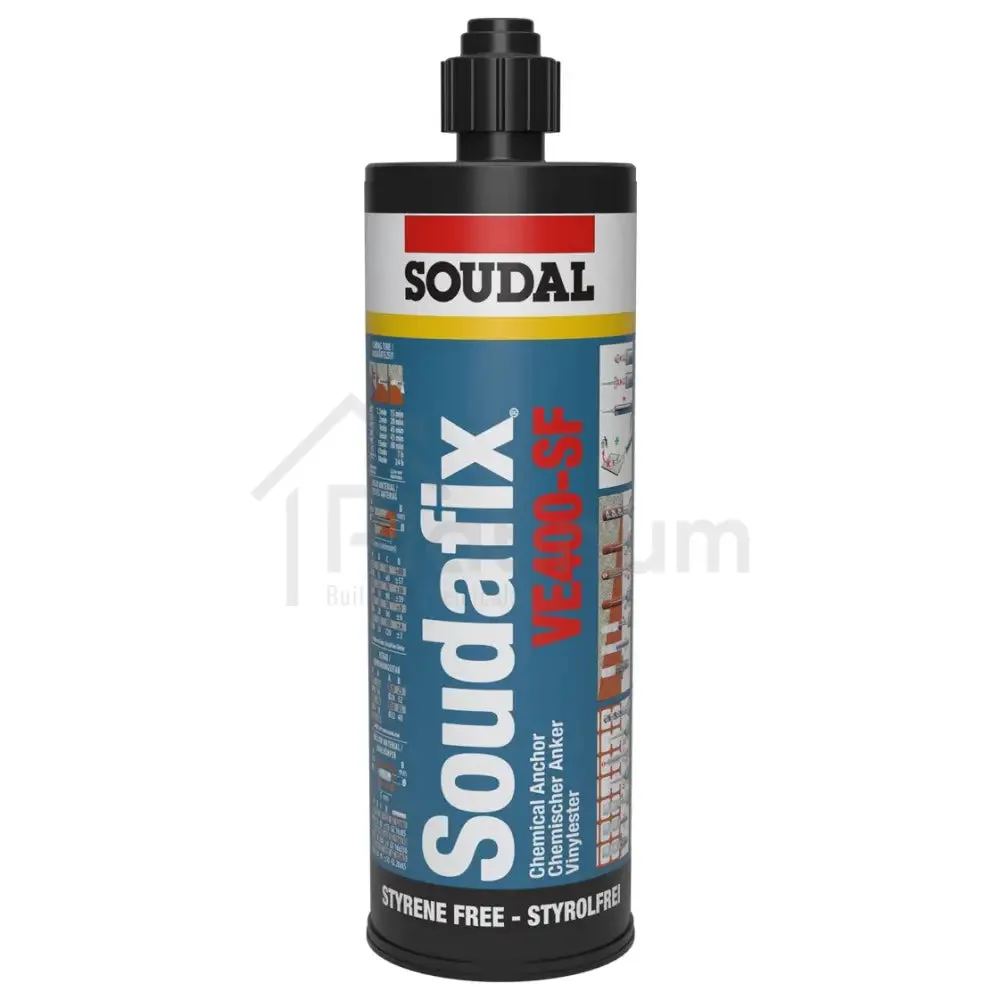

Available in 280ml and 410ml cartridges, Soudafix VE400-SF is an ideal solution for a wide range of anchoring and reinforcement requirements. Each cartridge is supplied with one nozzle.

Description

Soudafix VE400-SF Vinylester Chemical Anchor Resin - Styrene Free

Soudafix VE400-SF Vinylester Chemical Anchor Resin stands at the forefront of modern anchoring technology, embodying a unique synergy of strength, versatility, and ease of use. This premium-grade resin, rooted in vinylester formulation and being styrene-free, offers an efficient, odour-free solution in securing different types of threaded components such as rods (ETA: M8-M30), studs, reinforcement bars (ETA: Ø8-Ø32), threaded collars, profiles etc.

Its expansive application potential stands unparalleled with utility in diverse materials, from solid and hollow brick or cracked and uncracked concrete to natural stone and plasterboard walls.

The product, available in both 280ml and 410ml cartridges, carries the distinctions of European Technical Assessments ETA-10/0167 and ETA-12/0558, underscoring its guaranteed performance in all instances, including post-installed rebar connections.

Product Benefits:

Easy to Use and Apply: Its two-component formulation enables a swift and hassle-free application process, making it user-friendly.
Fast Cure: Offers a speedy cure, reducing downtime and aid in quicker project turnaround times.
C1 Seismic Resistance: Showcases strong seismic resistance, ensuring stability and reliability even in high-stress environments.
Wide Application Area: Its use is versatile beyond compare; it's even applicable in wet drill holes, underwater and at temperatures as low as -10°C, making it a robust solution for anchoring needs in challenging conditions.
Suitable for Overhead Installations: Its consistency and curing characteristics make it suitable for overhead installations without any compromise on bond strength.
Styrene-Free: A low-odour, styrene-free product, it contributes to healthier indoor air quality, making it more user and environment friendly.
Reusable Cartridge: The cartridges can be reused by simply exchanging the static mixer, ensuring economic usage.
Watertight and Impermeable Fixing: It offers not just anchoring but also impermeable and watertight fixing, enhancing durability and resistance to elements.
High Chemical & Fire Resistance: It has heightened resistance to chemicals, and carries the distinction of Fire Resistance Class F120 (M8-M30), adding to the safety features of the product.

Typical Applications:

Securing Heavy Loads: This anchor resin is a reliable solution for securing heavy loads in both solid and hollow building materials, offering reliable anchoring and structural reinforcement.
Pressure-Free Anchoring: It can be effortlessly applied even close to edges, allowing for pressure-free anchoring, ideal for intricate constructions or repair work.
Repair Mortar: Its robust formulation and high adhesive properties make it capable of being used as a repair mortar, thereby helping fix cracks or damages in structures.

Product Information:

Technical Information

Base	Vinyelester - Styrene Free
Consistency	Stable Paste
Curing System	Chemical Reaction
Full Curing Times () Cartridge Temperature: 15°C (*) Curing Time on Dry Surface (20C / 65% RH) (x2 on Wet Surface)	Temperature (*) ≥ -10°C ≥ -5°C ≥ 0°C ≥ 5°C ≥ 10°C ≥ 20°C ≥ 30°C ≥ 35°C ≥ 40°C	Start 90 min 90 min 45 min 25 min 15 min 6 min 4 min 2 min 1.5 min	Full Cure (**) 24 hours 14 hours 7 hours 2 hours 80 min 45 min 25 min 20 min 15 min
Specific Gravity	1.77g/cm³
Temperature Resistance	-40°C to 120°C
Dynamic Elasticity Modulus	14000 N/mm²
Maximum Bending Tensile Strength	15 N/mm²
Maximum Compression Strength	100 N/mm²

Application

Substrate Suitability:

All usual porous building substrates. This product has poor adhesion on smooth non-porous materials.

All surfaces should be clean, dry, free of dust and grease

No particular treatment of substrate needed. In hollow materials the use of sleeves is necessary.

Suitable Applicator Guns:

For 280ml Cartridges: Use a

For 410ml Cartridges: Use the

Application Method:

Drill hole at recommended depth.
Clean drill hole with brush and air pump thoroughly.
Screw static mixer onto cartridge.
Dispense the first 10 cm of the product to waste (on piece of cardboard) until an even colour (dark grey) is achieved, and the product is well mixed.
Solid stone: Fill the drill hole from bottom up.
Hollow brick: Insert sleeve and fill it bottom up, so that the resin is pressed through the tiny holes of the sleeve.
Insert anchoring rod with twisting left-right motion.
Inspect the drill hole for adequate filling.
Observe hardening time. Don’t move the anchoring rod during curing.
Leave the excess of product to cure as well.
Remove it mechanically with hammer and chisel once cured.
Install component, applying the right torque.
