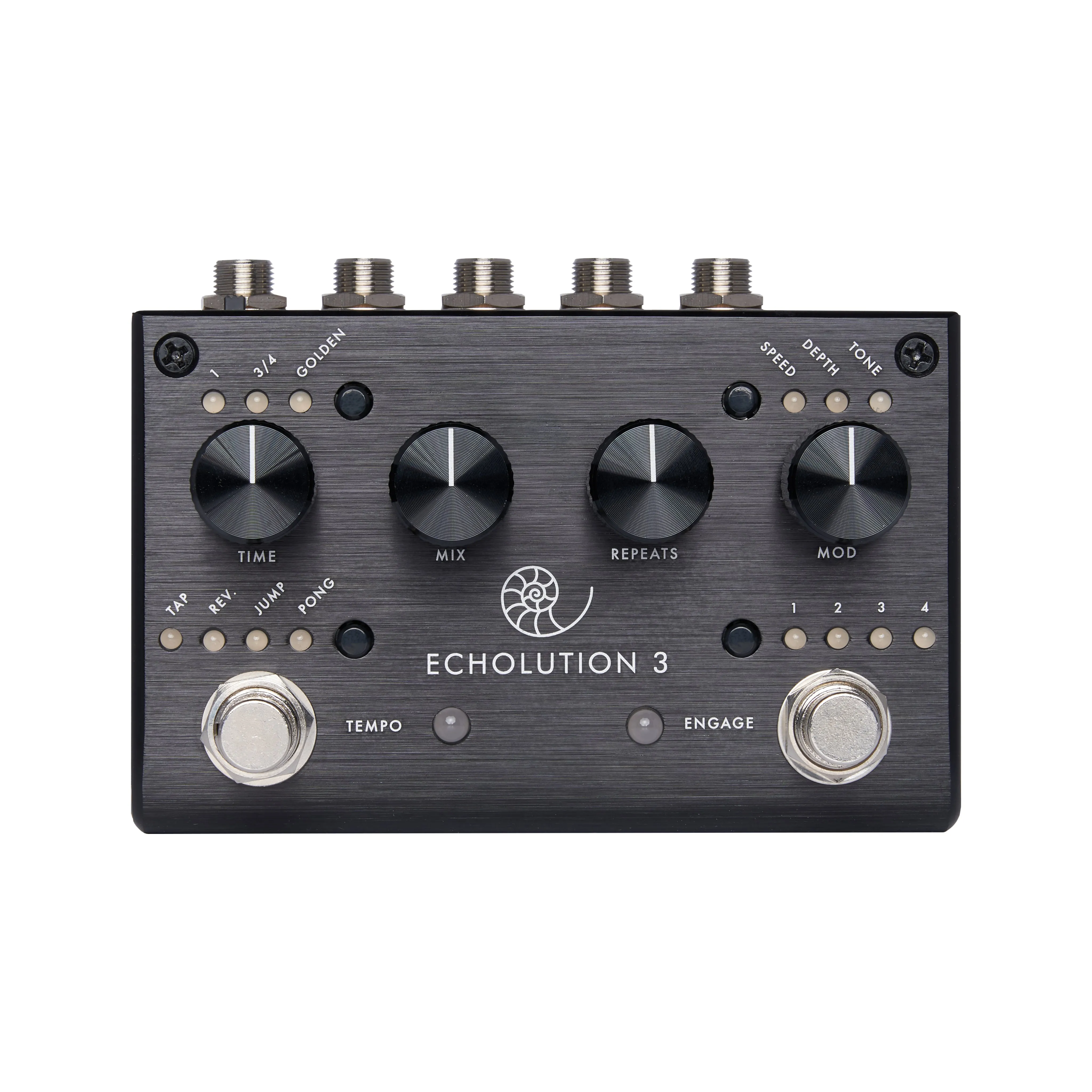

Echolution 3 is a multi-tap stereo modulation delay offering a myriad of sound design options including reverse, jump, pong, modulation tempo sync, variable low pass filter, flexible signal routing and comprehensive MIDI control. Delay times ranging from 100ms to 5 seconds can be dialed in using the Time knob or via Tap Tempo using the left footswitch. A second delay tap can be set to the same length or a fraction of the main delay time to create rhythmic echoes. The ¾ fraction creates a dotted eight note delay, while the Golden fraction uses the sacred geometry of the Golden Ratio (.382) as the multiplier for the second tap. The multi-tap settings can be even further enhanced by the stereo ping pong effect, which causes the different delay taps to switch sides on each repeat. Store up to 4 presets, unlock hidden features with the Universal Remote footswitch, and design yet unheard delay lines. Runs on standard 9VDC.
Specifications:
- Function: Stereo Multi-Tap Delay
- Category 1: Delay
- Category 2: Modulation
- Expression: TRS Remote / MIDI
- Bypass: Buffered
- Voltage: 9VDC
- Current Draw: 100mA
- Input Impedance: High
- Output Impedance: 1k
- Dimensions: 3.25" L x 4.5" W x 2.2" H
- Weight: 1 lbs
