FEATURES
- Tough, durable hammer with excellent drilling performance in concrete from the high torque motor and gears and a 3.8 joule single blow energy
- 900 watt motor combined with optimised drilling speed results in unsurpassed drilling performance
- Electronics with accelerator switch

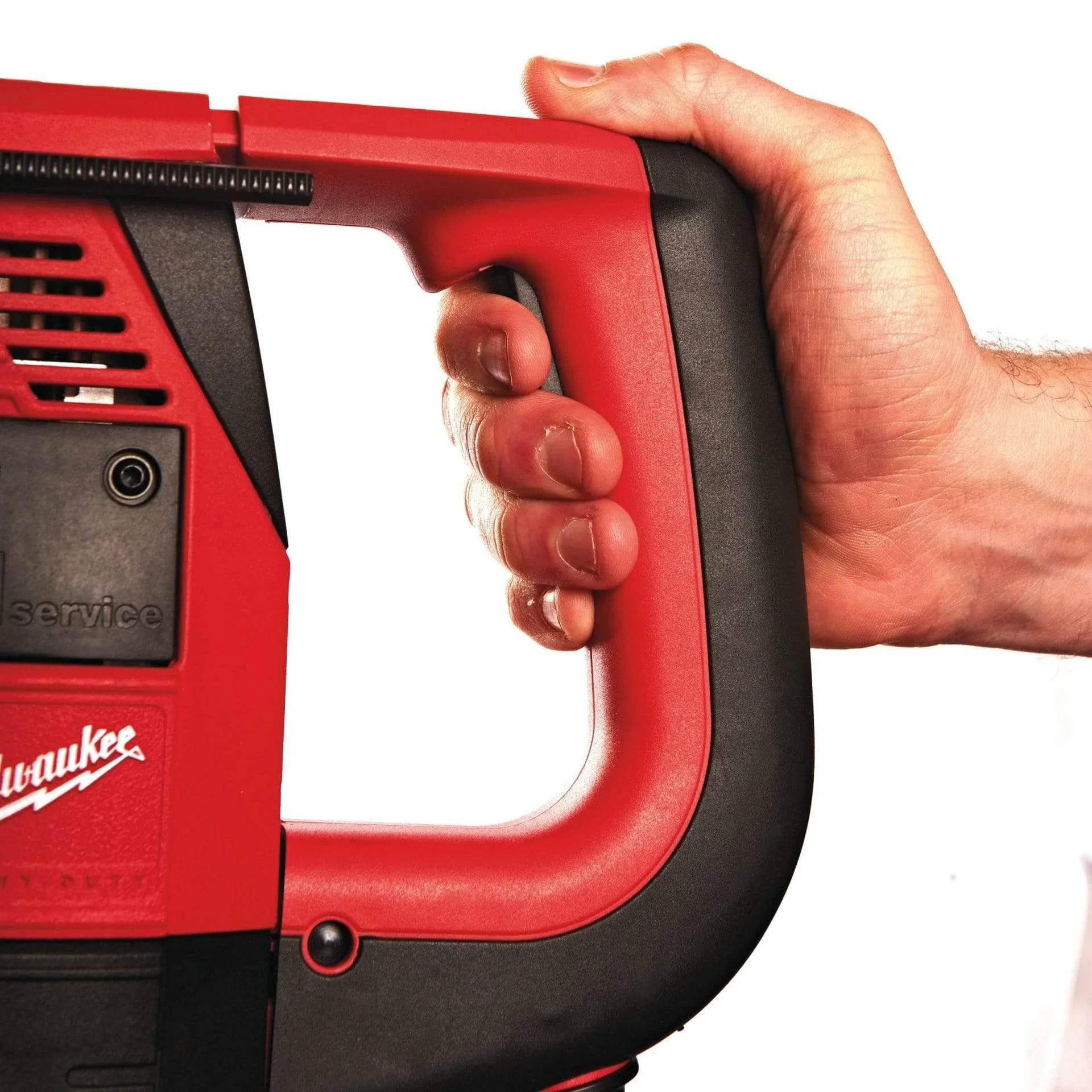

- Good balance and easy handling from the compact L-shape design with AVS (Anti-Vibration-System) and soft grip handle
- Fast tool changing from the FIXTEC™ system with keyless chuck
- Heavy Duty magnesium gear casing for optimum seating of gears for a longer operational life
- Reliable safety clutch protects machine and user

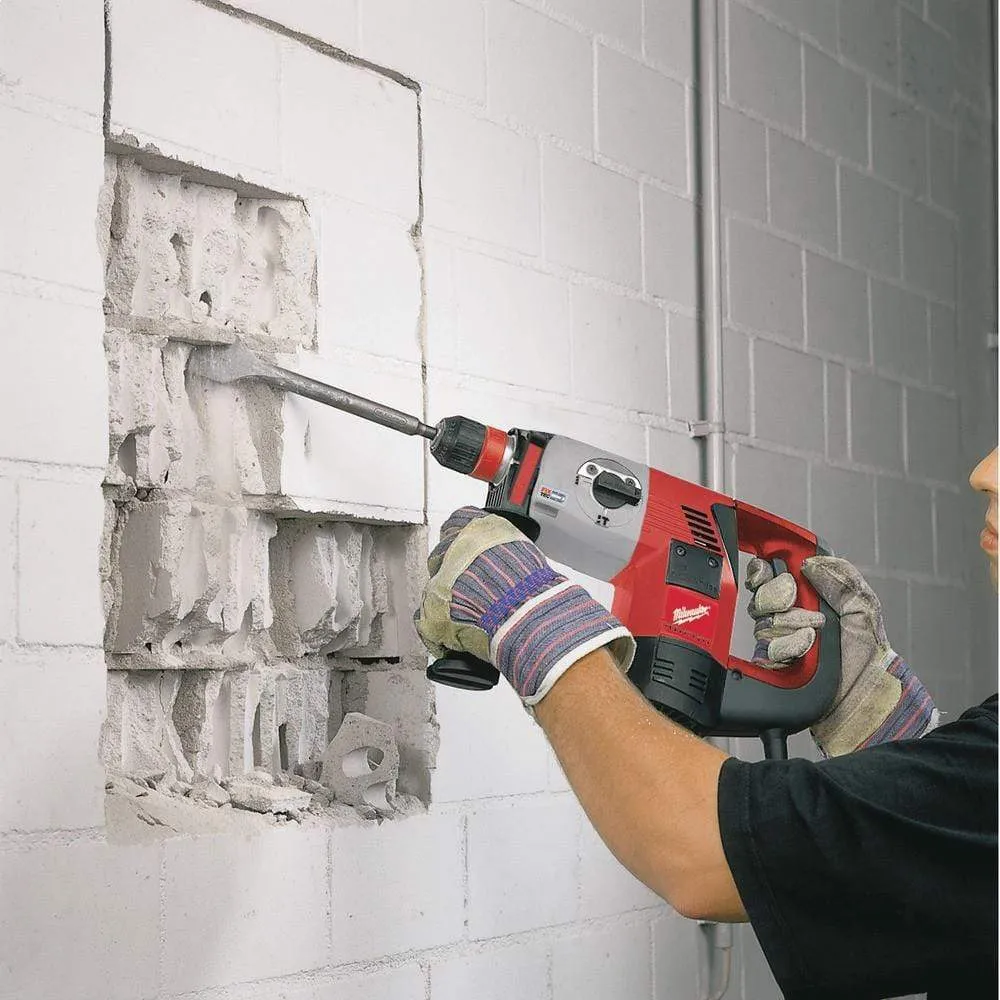

- Roto-stop and variolock for maximum control when doing light chiselling work
- 4 m cable

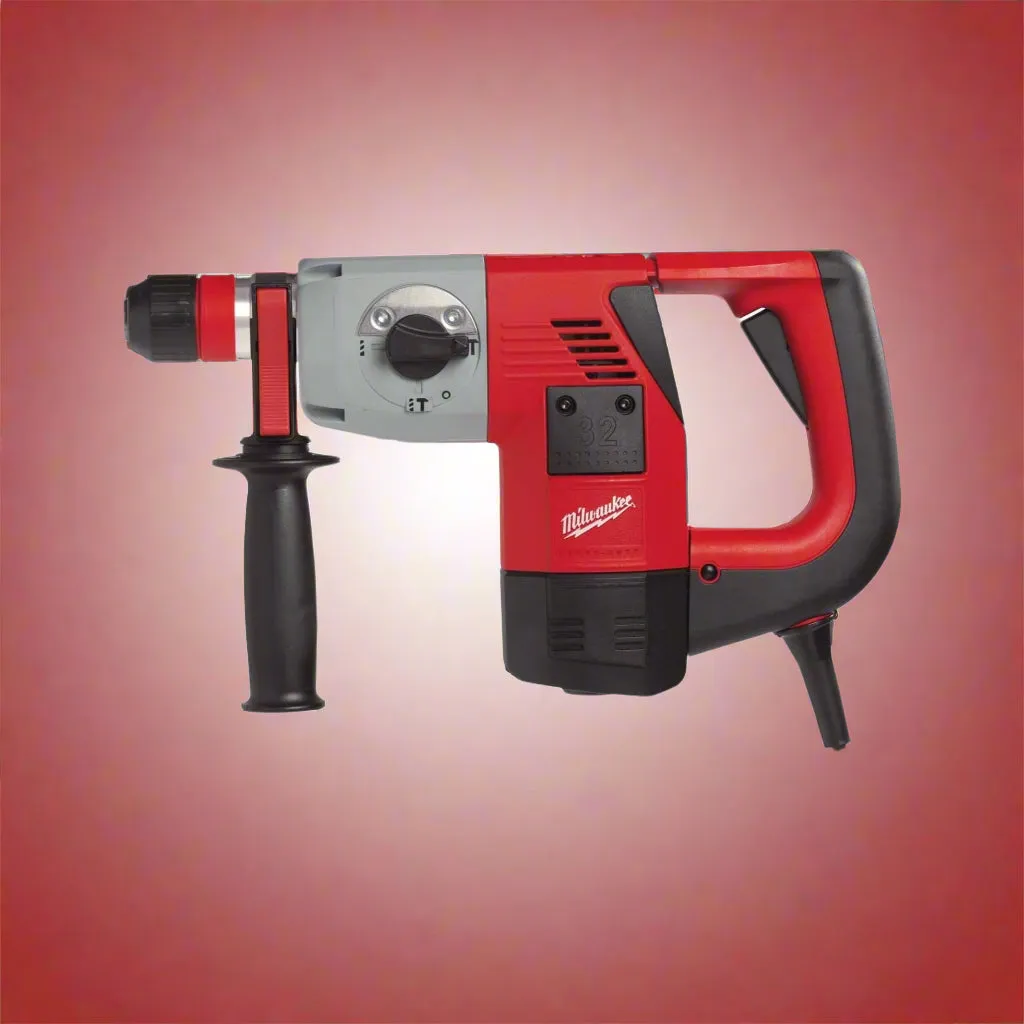

| PRODUCT SPECIFICATIONS | PLH 32 XE | |
|---|---|---|
| Article Number | 4933400069, 4933400077 | |
| Blow energy (EPTA)(J) | 3.8 | |
| Full load hammer action (bpm) | 0 - 4500 | |
| Full load speed (rpm) | 0 - 800 | |
| Max. drilling concrete (mm) | 32 | |
| Max. drilling masonry (mm) | 32 | |
| Max. drilling steel (mm) | 16 | |
| Max. drilling wood (mm) | 40 | |
| Max. drilling wood/ steel/ concrete (mm) | 40/ 16/ 32 | |
| Power input (W) | 900 | |
| Standard equipment | Front handle with metal depth gauge, adaptor with 13 mm keyless chuck, drill bit lubricant | |
| Supplied in | Kitbox | |
| Tool reception | SDS-Plus | |
| Vibration chiseling (m/s²) | 20 | |
| Vibration chiselling uncertainty (m/s²) | 1.5 | |
| Vibration drilling (m/s²) | 22 | |
| Weight (kg) | 3.6 |
