29" WHEELS / 203mm REAR / 203mm FRONT

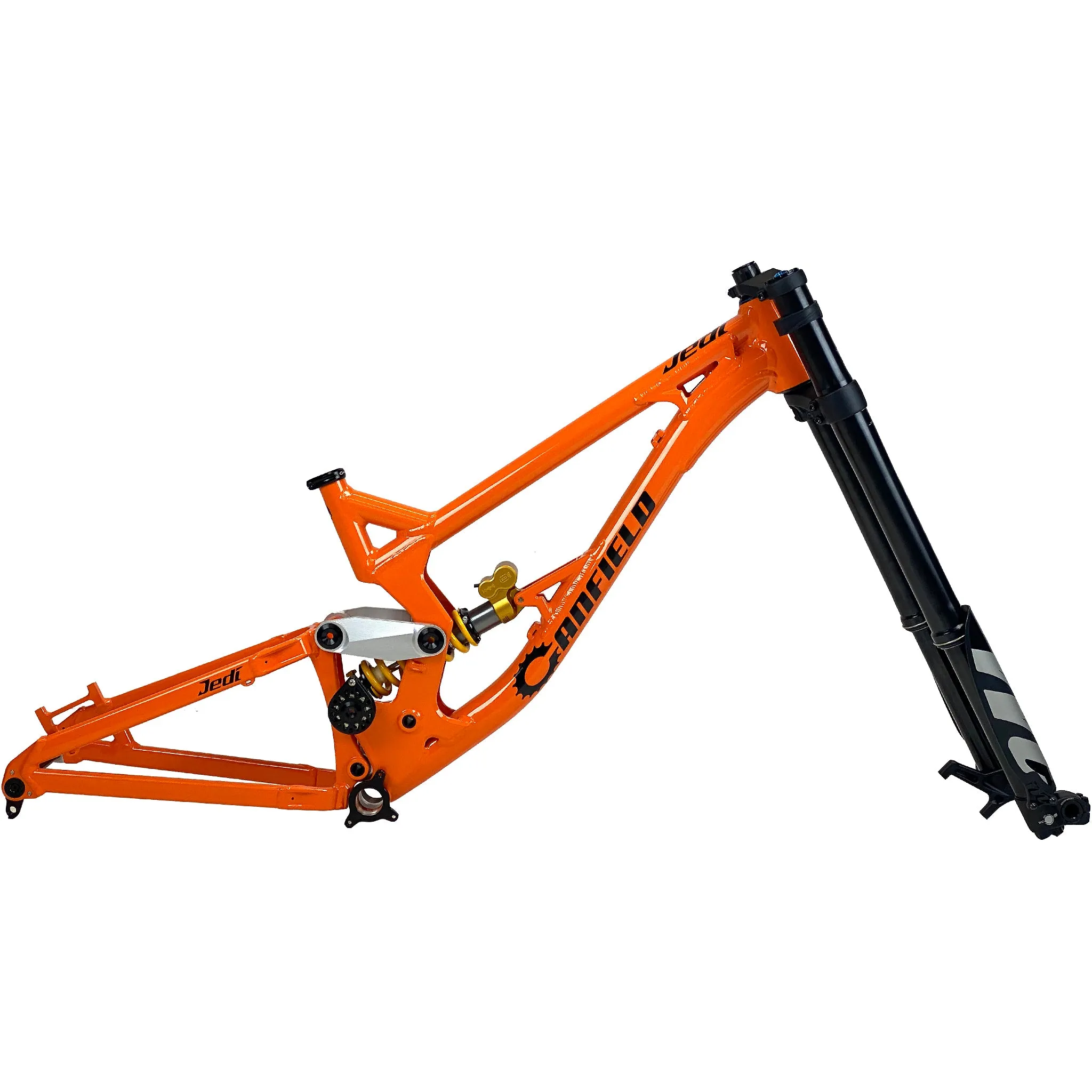

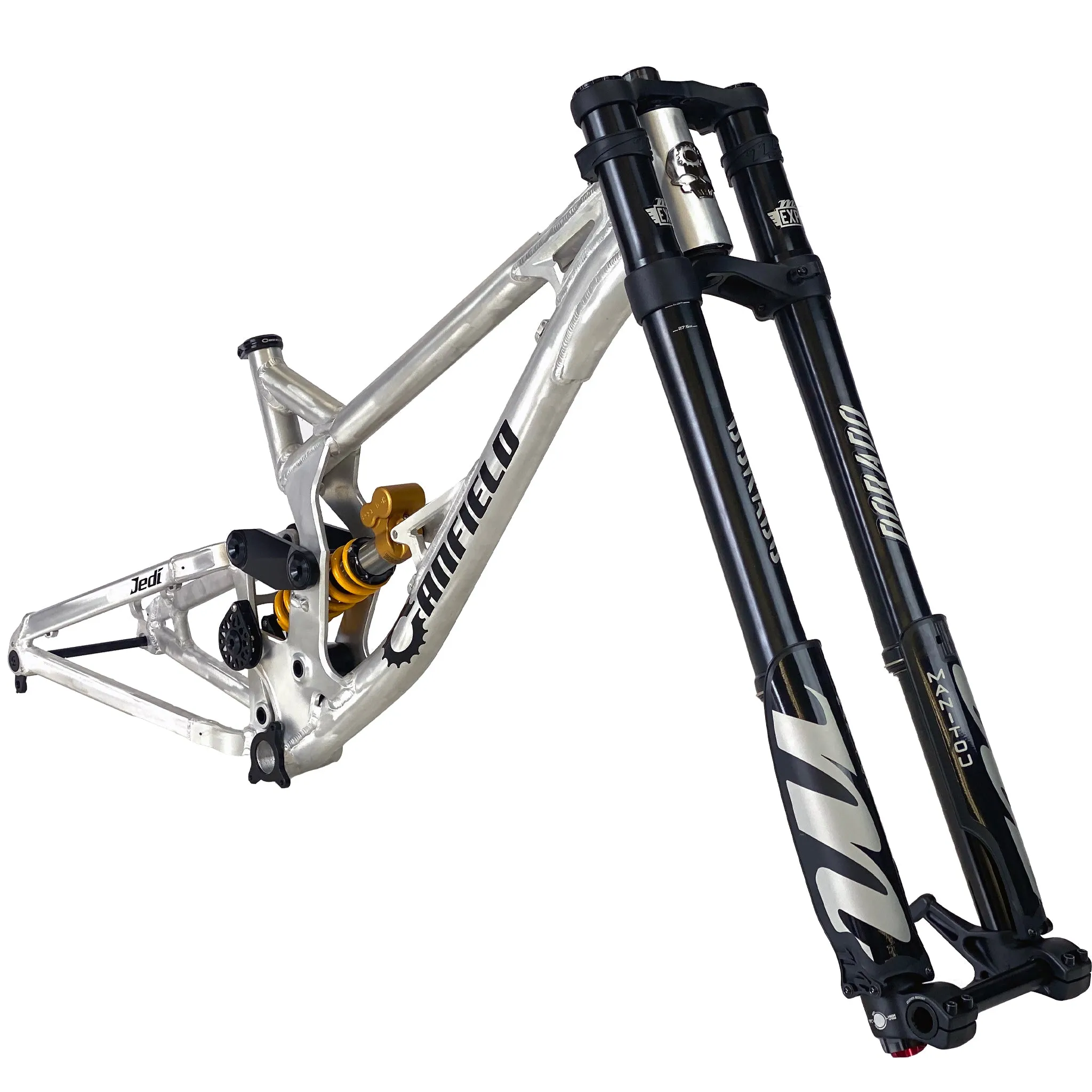

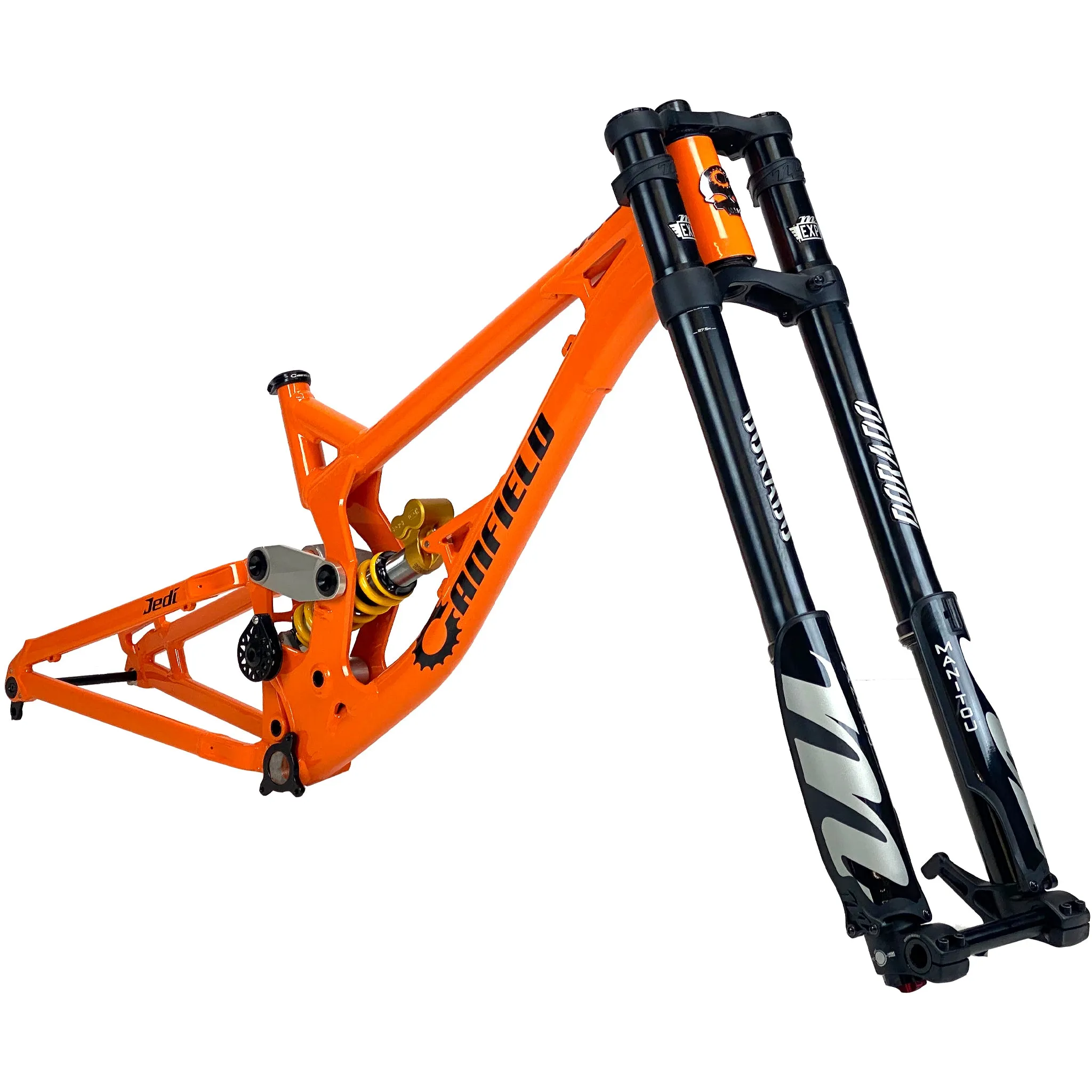

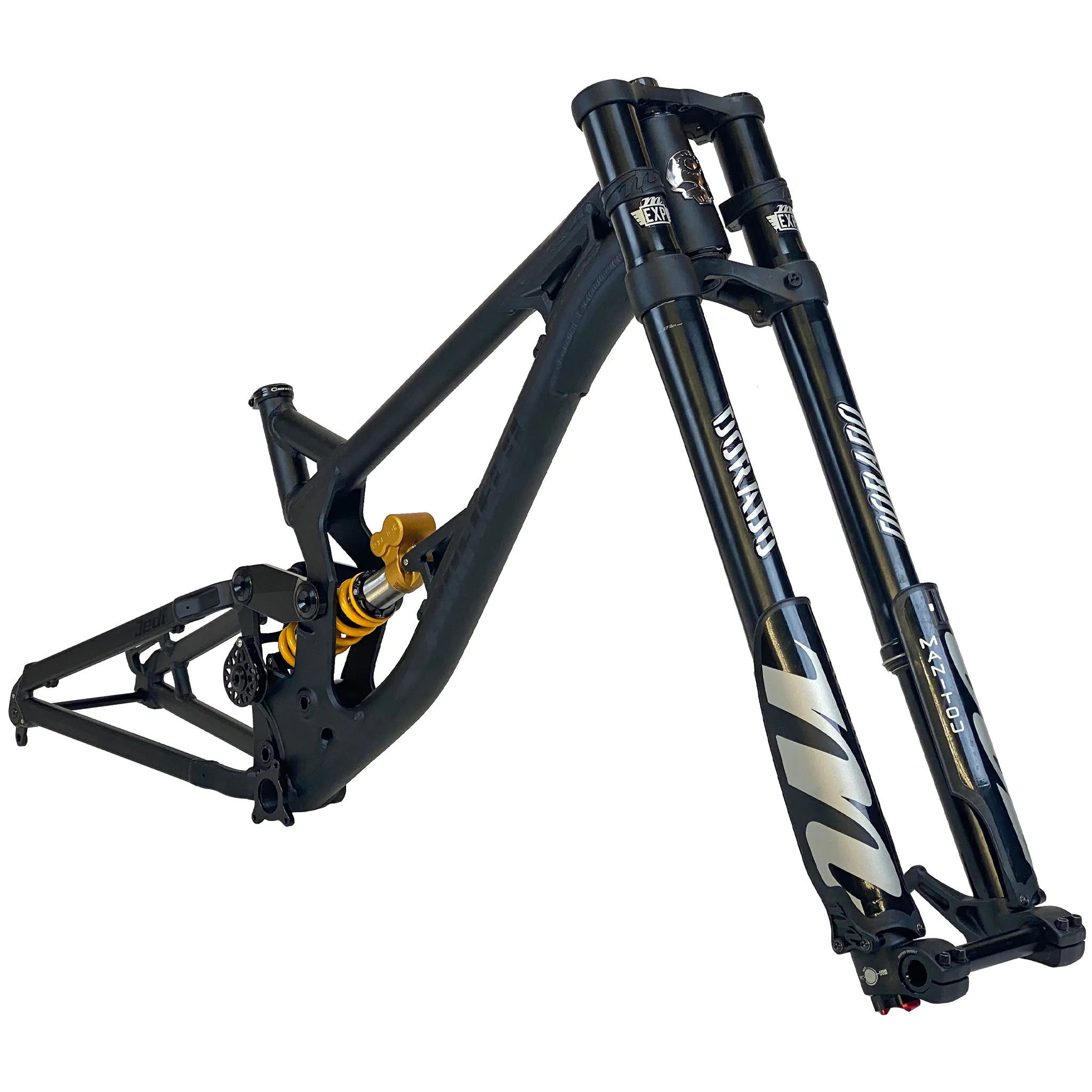

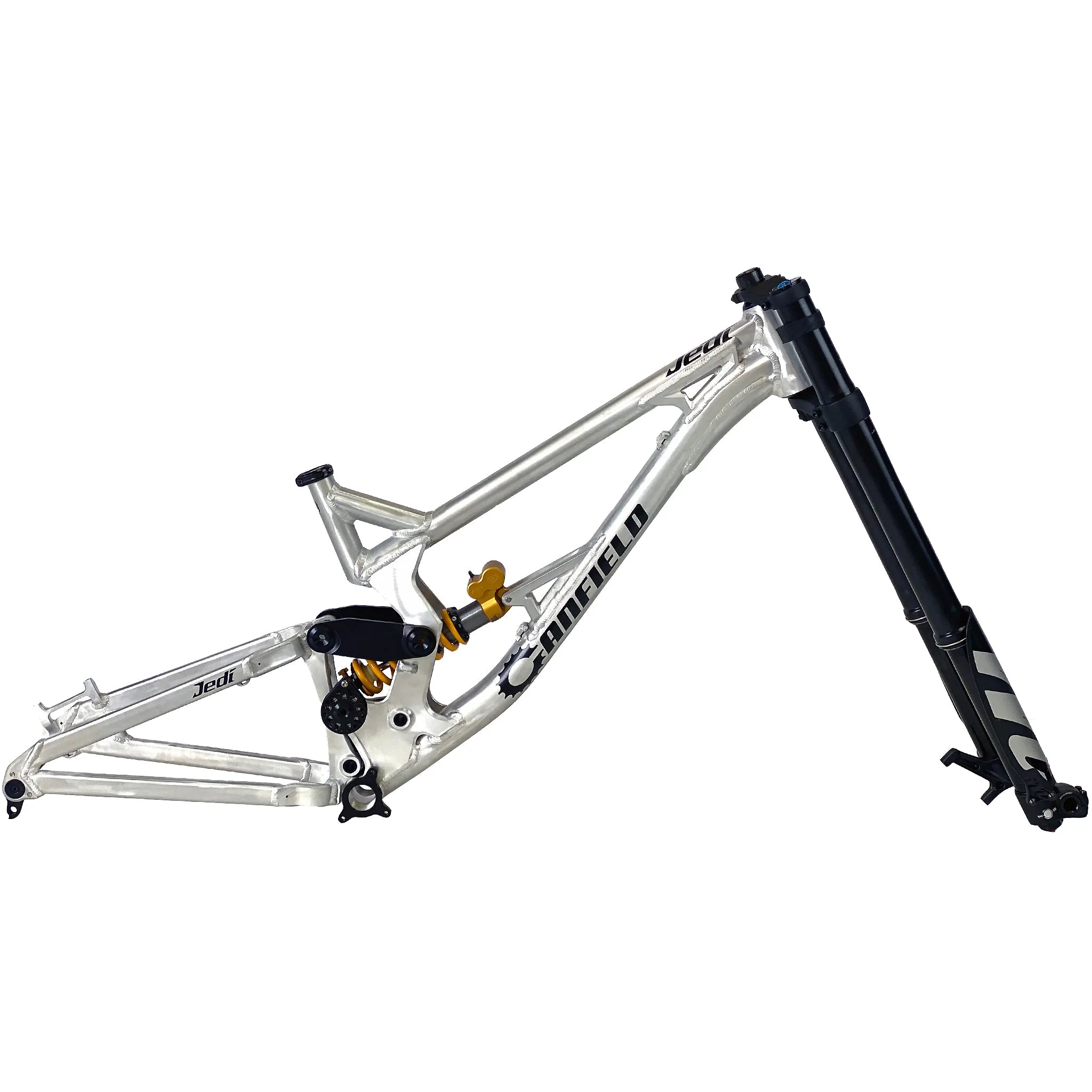

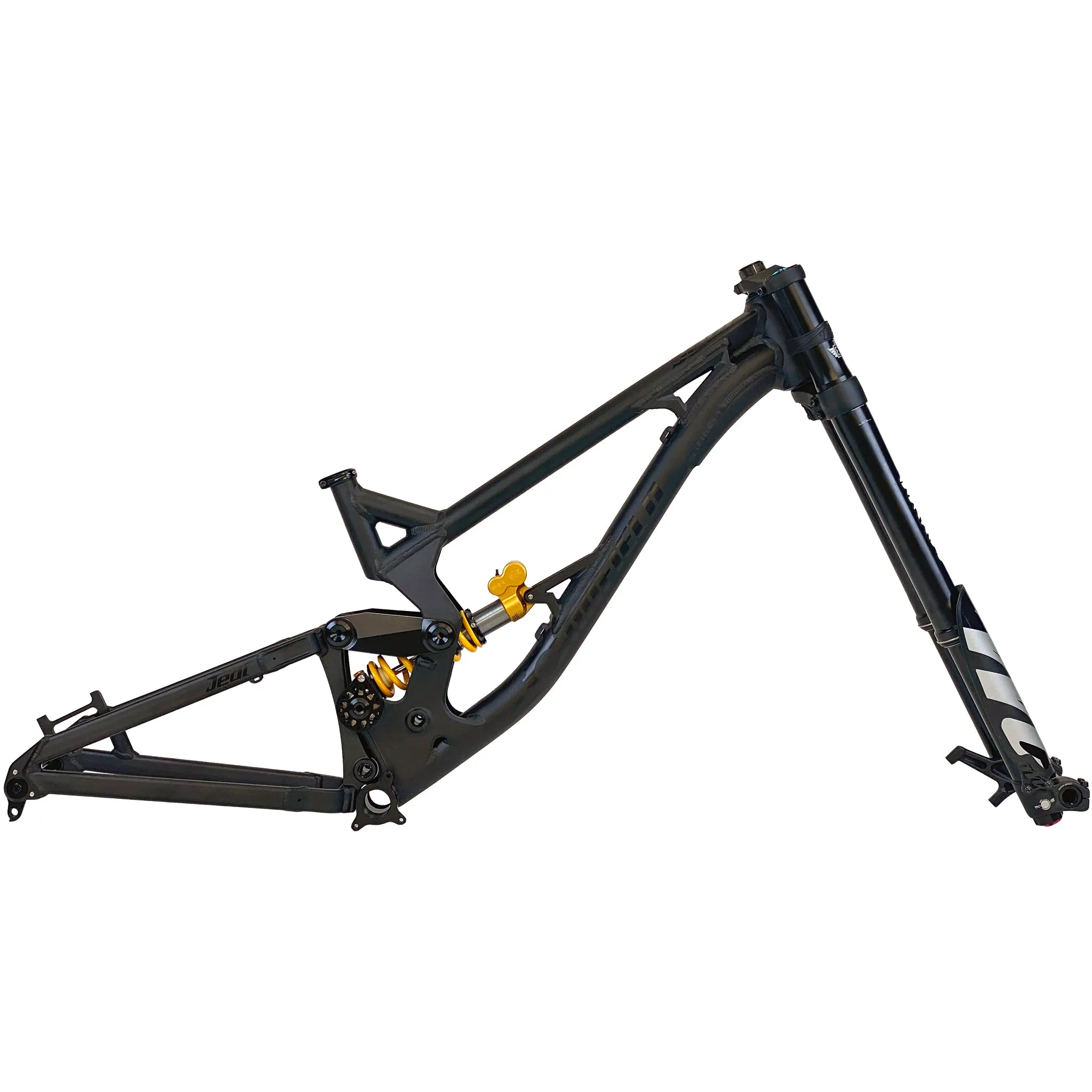

Return of the legend. Introducing the Canfield Jedi 29. One of the most revered downhill bikes is back and faster than ever before. But big wheels are just the beginning. With a redesigned frame, linkage layout and suspension kinematics, the all-new Jedi does what many thought impossible and improves one of the most iconic gravity machines in nearly every aspect.
• Horizontal Rear Travel: 19mm (horizontal) / 64mm (effective)
FRAME SPECS
• Maximum seatpost insertion: 133mm(M), 143mm (L), 153mm (XL)
*Photos are for illustration purposes only. Actual build spec not pictured.
GEO & SIZING
| SIZE | MEDIUM | LARGE | XL |
| Top Tube Length (Effective) | 610mm | 636mm | 661mm |
| Reach | 450mm | 475mm | 500mm |
| Front Center | 825mm | 852mm | 877mm |
| Stack | 640mm | 644mm | 644mm |
| Standover | 711mm | 711mm | 711mm |
| Wheel Base | 1,252mm | 1,279mm | 1,304mm |
| Head Tube Angle* | 62.5° | 62.5° | 62.5° |
| Head Tube Length | 115mm | 120mm | 120mm |
| Seat Tube Angle (Effective) | 76° | 76° | 76° |
| Seat Tube Angle (Actual) | 67° | 67° | 67° |
| Seat Tube Length | 405mm | 405mm | 405mm |
| Chainstay Length (unsagged) | 427mm | 427mm | 427mm |
| Chainstay Length (sagged) | 443mm | 443mm | 443mm |
| Bottom Bracket Height (Approximate)** | 351mm | 351mm | 351mm |
| Bottom Bracket Drop | 24mm | 24mm | 24mm |
| Rider Height*** | 5'5"-5'11" | 5'9"-6'3" | 6'1"-6'6" |
*Ohlins coils use non-standard increments
